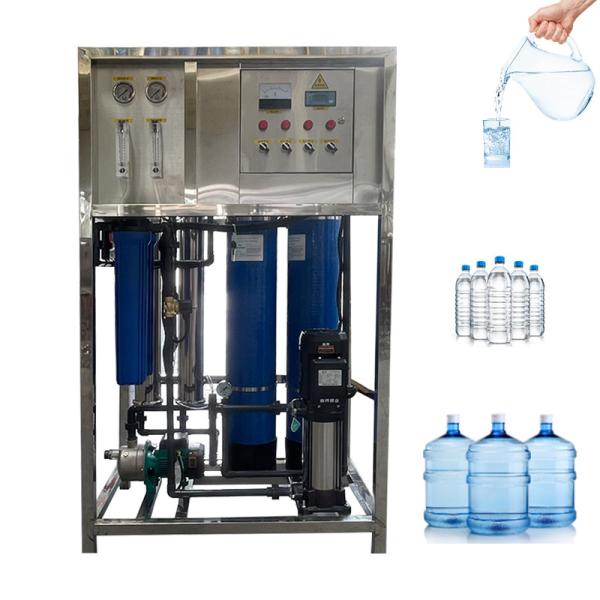

0.5 tons double stage reverse osmosis (RO) water treatment equipment
Equipment composition
Two-stage reverse osmosis system: The equipment is mainly composed
of raw water pretreatment system, first-stage reverse osmosis
system and second-stage reverse osmosis system.
Parameter Table
Model | Water Making Ability | Inlet Caliber | Effluent Caliber | Blowdown alCer | Size(mm) | Power |
YSRO-0.5T | 0.5m3/h | DN20 | DN20 | DN15 | 1500×600×1500 | 1.3kw |
YSRO-1T | 1m3/h | DN25 | DN25 | DN20 | 1700×600×1500 | 2.1kw |
YSRO-2T | 2m3/h | DN32 | DN25 | DN20 | 2500×1000×1950 | 4.4kw |
YSRO-3T | 3m3/h | DN40 | DN32 | DN25 | 2500×1200×2150 | 4.5kw |
YSRO-5T | 5m3/h | DN50 | DN40 | DN32 | 2500×1350×2150 | 7.0kw |
YSRO-8T | 8m3/h | DN50 | DN50 | DN40 | 3500×1500×2150 | 11kw |
YSRO-10T | 10m3/h | DN50 | DN50 | DN40 | 3500×1600×2300 | 15kw |
Technical characteristics
High quality water: After the two-stage reverse osmosis treatment
of water, its conductivity can usually be kept below the low level
stipulated in national standards (such as ≤5μS/cm or lower), to
ensure that the water quality meets the standard of pure water, can
be directly drunk or used for high requirements of industrial
water.
Deep purification: The reverse osmosis membrane has a nanoscale
aperture, which can effectively remove inorganic salts, heavy
metals, organic matter, bacteria, viruses and other impurities in
the water, and provide high-quality pure water.
,
Packaging and transportation
FAQ
1.Material of reverse osmosis system?
Support customization, You can choose FRP(fiber glass) filters with U-PVC pipe, stainless
steel filters with U-PVC pipe or full stainless steel.
2. What is packing of this machine? Is it suitable for shipment?
Machine will be packed by standard wooden case. It is suitable for
shipment. After you receive machine, you only need to open wooden
case to pick up machine.
3. What is the daily maintenance of water treatment equipment?
Periodically check the running status of each component of the
device. Clean and replace filter elements, membrane components and
other consumable products. Keep the area around equipment clean and
dry. Record device running data to discover and solve problems in
time.
4. How to extend the service life of water treatment equipment?
Choose high quality equipment and accessories. Operate and maintain
the equipment in strict accordance with the manual. Regular
professional maintenance and maintenance services. Avoid equipment
overload for a long time.
5.How can I pay you?
After we confirmed order, I will send you sales contract with our
company bank information. You can transfer money to our company
bank account by T/T. Or you can pay via Western Union with credit
card, Smartcard or Visa Card.Or do L/C if it is accepted by both of
us .
If you still don't know how to pay, just call me at+86
18203685329(whatsapp no.)
