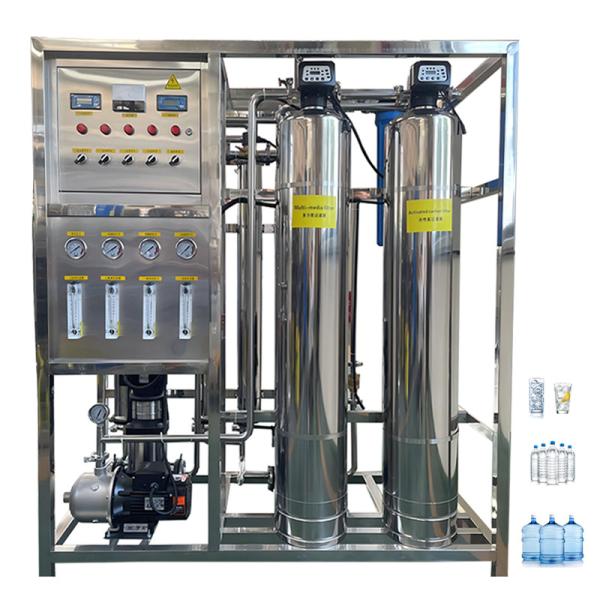

0.5 tons double stage reverse osmosis (RO) water treatment equipment
Equipment composition
Two-stage reverse osmosis system: The equipment is mainly composed
of raw water pretreatment system, first-stage reverse osmosis
system and second-stage reverse osmosis system.
Parameter Table
Model | Water Making Ability | Inlet Caliber | Effluent Caliber | Blowdown alCer | Size(mm) | Power |
YSRO-0.5T | 0.5m3/h | DN20 | DN20 | DN15 | 1500×600×1500 | 1.3kw |
YSRO-1T | 1m3/h | DN25 | DN25 | DN20 | 1700×600×1500 | 2.1kw |
YSRO-2T | 2m3/h | DN32 | DN25 | DN20 | 2500×1000×1950 | 4.4kw |
YSRO-3T | 3m3/h | DN40 | DN32 | DN25 | 2500×1200×2150 | 4.5kw |
YSRO-5T | 5m3/h | DN50 | DN40 | DN32 | 2500×1350×2150 | 7.0kw |
YSRO-8T | 8m3/h | DN50 | DN50 | DN40 | 3500×1500×2150 | 11kw |
YSRO-10T | 10m3/h | DN50 | DN50 | DN40 | 3500×1600×2300 | 15kw |
Working principle
Water intake: Water from tap water or other source is introduced
into the device.
Pretreatment: Removal of large particles and organic matter through
a pretreatment system.
Primary reverse osmosis: Water passes through a primary reverse
osmosis membrane at high pressure, removing most ions, organic
matter and microorganisms.
Secondary reverse osmosis: The water after the primary treatment
enters the secondary reverse osmosis system to further remove
residual impurities.
Purified water output: After secondary purification, the output
water reaches the high purity water standard and can be used
directly.
Technical characteristics
Efficient purification: Through the filtration of the two-stage
reverse osmosis membrane, it can effectively remove ions, organic
matter, microorganisms and other impurities in the water.
Stable water quality: The water quality is stable and will not
fluctuate greatly due to the change of raw water quality.
Energy saving and environmental protection: The use of advanced
energy-saving technology, effectively reduce the energy consumption
and operating costs of equipment, while generating less waste
water.
High degree of automation: easy to operate, can achieve one-click
operation and remote monitoring, with fault self-diagnosis
function.
Product advantage
High desalination rate: The use of imported reverse osmosis
membrane has a very high desalination rate, which can effectively
remove dissolved matter in water and further improve water quality.
,
Packaging and transportation
FAQ
1.Material of reverse osmosis system?
Support customization, You can choose FRP(fiber glass) filters with U-PVC pipe, stainless
steel filters with U-PVC pipe or full stainless steel.
2. What is packing of this machine? Is it suitable for shipment?
Machine will be packed by standard wooden case. It is suitable for
shipment. After you receive machine, you only need to open wooden
case to pick up machine.
3. What is the daily maintenance of water treatment equipment?
Periodically check the running status of each component of the
device. Clean and replace filter elements, membrane components and
other consumable products. Keep the area around equipment clean and
dry. Record device running data to discover and solve problems in
time.
4. How to extend the service life of water treatment equipment?
Choose high quality equipment and accessories. Operate and maintain
the equipment in strict accordance with the manual. Regular
professional maintenance and maintenance services. Avoid equipment
overload for a long time.
