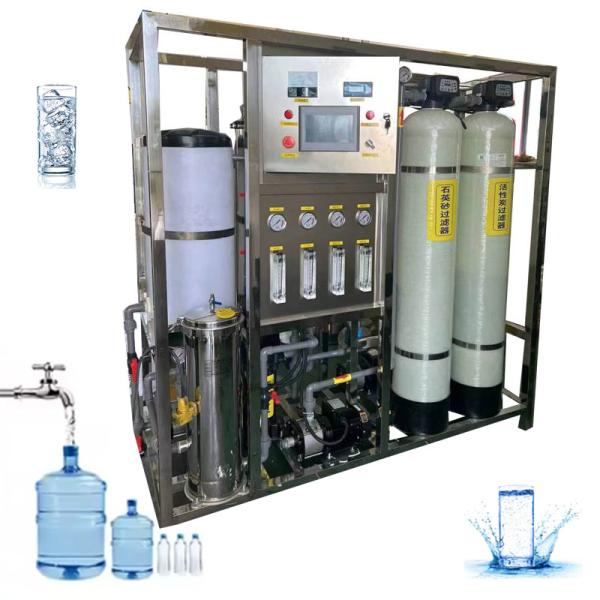

0.25 tons double stage reverse osmosis (RO) water treatment equipment
Equipment composition
Two-stage reverse osmosis system: The equipment is mainly composed
of raw water pretreatment system, first-stage reverse osmosis
system and second-stage reverse osmosis system.
Parameter Table
Model | Water Making Ability | Inlet Caliber | Effluent Caliber | Blowdown alCer | Size(mm) | Power |
YSRO-0.5T | 0.5m3/h | DN20 | DN20 | DN15 | 1500×600×1500 | 1.3kw |
YSRO-1T | 1m3/h | DN25 | DN25 | DN20 | 1700×600×1500 | 2.1kw |
YSRO-2T | 2m3/h | DN32 | DN25 | DN20 | 2500×1000×1950 | 4.4kw |
YSRO-3T | 3m3/h | DN40 | DN32 | DN25 | 2500×1200×2150 | 4.5kw |
YSRO-5T | 5m3/h | DN50 | DN40 | DN32 | 2500×1350×2150 | 7.0kw |
YSRO-8T | 8m3/h | DN50 | DN50 | DN40 | 3500×1500×2150 | 11kw |
YSRO-10T | 10m3/h | DN50 | DN50 | DN40 | 3500×1600×2300 | 15kw |
Process and function
First, pretreatment stage
Raw water pressurization: First, the raw water (such as tap water,
surface water, groundwater, etc.) is pressurized through the
booster pump
Coarse filtration: The pressurized raw water enters the
pretreatment system, and first passes through the coarse filter to
remove the large particle impurities and suspended matter in the
water.
Precision filtration: Subsequently, the water enters the precision
filter to further remove small particles, colloids and other
impurities in the water
Second, the first stage of reverse osmosis
Pressurization by primary high pressure pump: The pre-treated water
is pressurized by primary high pressure pump to increase the
pressure of water to meet the needs of the reverse osmosis process.
Primary reverse osmosis treatment: The pressurized water enters the
primary reverse osmosis system and is filtered through the primary
reverse osmosis membrane. At this stage, the tiny pore size on the
membrane allows only water molecules and some small molecules to
pass through, while impurities such as dissolved solids, ions,
organic matter and microorganisms are trapped outside the membrane
Three, two reverse osmosis stage
Secondary high pressure pump pressurization: The water produced by
the primary reverse osmosis is then pressurized by the secondary
high pressure pump and fed into the secondary reverse osmosis
system.
Secondary reverse osmosis treatment: In a secondary reverse osmosis
system, water is filtered again through a reverse osmosis membrane.
Therefore, it can further remove the residual impurities in the
water and improve the purity of the water quality. After the
two-stage reverse osmosis treatment of water, the ion removal rate
can reach more than 99.9%, suitable for high water quality
requirements in the field.
,
Packaging and transportation
FAQ
1.Material of reverse osmosis system?
Support customization, You can choose FRP(fiber glass) filters with U-PVC pipe, stainless
steel filters with U-PVC pipe or full stainless steel.
2. What is packing of this machine? Is it suitable for shipment?
Machine will be packed by standard wooden case. It is suitable for
shipment. After you receive machine, you only need to open wooden
case to pick up machine.
3. What is the daily maintenance of water treatment equipment?
Periodically check the running status of each component of the
device. Clean and replace filter elements, membrane components and
other consumable products. Keep the area around equipment clean and
dry. Record device running data to discover and solve problems in
time.
4. How to extend the service life of water treatment equipment?
Choose high quality equipment and accessories. Operate and maintain
the equipment in strict accordance with the manual. Regular
professional maintenance and maintenance services. Avoid equipment
overload for a long time.
5.How can I pay you?
After we confirmed order, I will send you sales contract with our
company bank information. You can transfer money to our company
bank account by T/T. Or you can pay via Western Union with credit
card, Smartcard or Visa Card.Or do L/C if it is accepted by both of
us .
If you still don't know how to pay, just call me at+86
18203685329(whatsapp no.)
